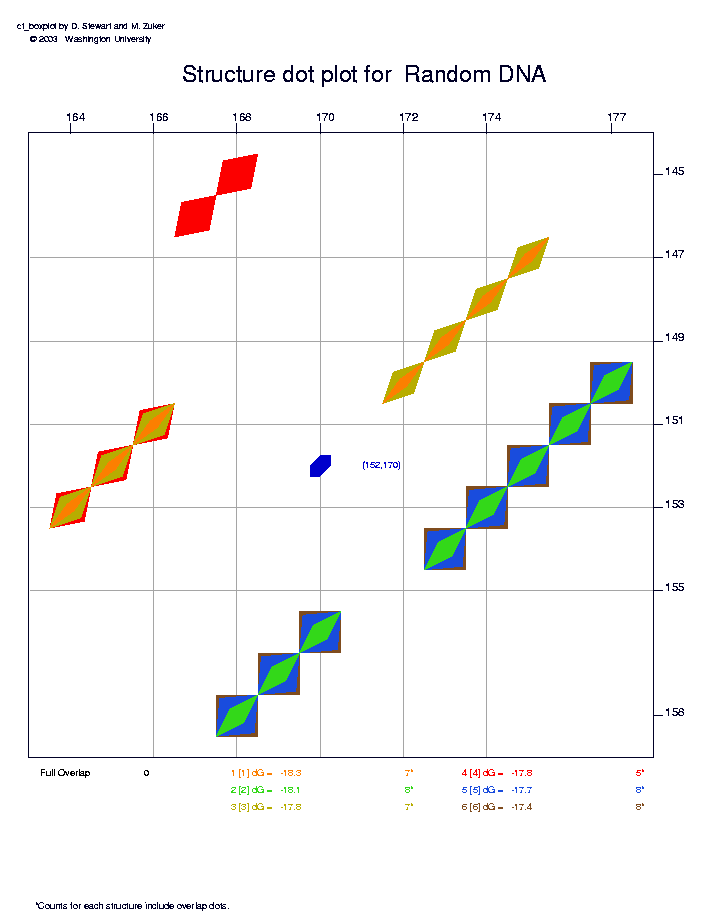

Figure 12:
The default structure dot plot has
been magnified by a factor of 20 about (152,170), shown in blue. The
multicolor option has been chosen. By eye, one can see that an
orange-yellow base pair is in foldings 1 and 3. A yellow-orange-red
base pair is in foldings 1,3 and 4. The green-blue-brown base pairs
are in foldings 2, 5 and 6. The chosen base pair was not in a folding
because it is too difficult to hit on a base pair at the resolution in
the default dot plot for this case.
Michael Zuker
Professor of Mathematical Sciences
Rensselaer Polytechnic Institute
2003-07-07
