The DINAMelt Server - results for unnamed job 260420_044754
Job Parameters
Submitted at Mon 20 Apr 2026 04:48:20 AM UTC
5'-CAAGACTGGAAGACCC-3' vs. 5'-CAAGACGGGAAGACCC-3'
From 0°C by 1°C to 95°C as DNA
[A0] = 5e-12 M, [B0] = 5e-08 M
[Na+] = 0.05 M, [Mg++] = 0.003 M (oligo mode)
Computation took 11.0 seconds (Log file)
Warning: no significant hybridization of your sequences was found.
This may indicate an error in the sequences and/or strand concentrations.
Plots

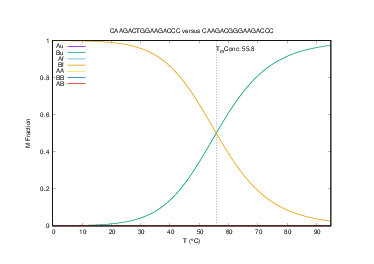

| Concentration Plot | |
|---|---|
)) | |
| Download: Postscript PDF Text | |

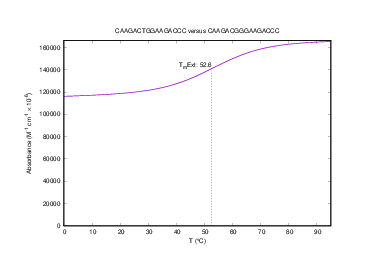

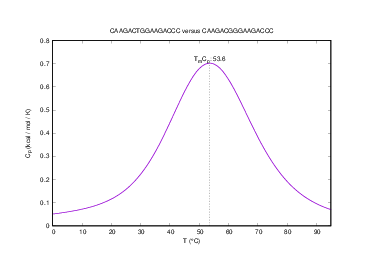

| Heat Capacity Plot | Absorbance Plot |
)) |
)) |
| Download: Postscript PDF Text | Download: Postscript PDF Text |
| Download detailed plot: Postscript PDF | Download detailed plot: Postscript PDF |
Probability Dot Plots
Important Numbers
Tm(Conc): 55.8°C
ΔG: 5.0 kcal/mol ΔH: 28.6 kcal/mol ΔS: 88.2 cal/mol/K Tm(Cp): 53.6°C
Tm(Ext1): 53.1°C
Tm(Ext2): 52.6°C
Download the entire job with all files, formatted as:
tar/bzip2
tar/gzip
zip
The first time you ask for an archive there may be a slight delay while it is created.
