The DINAMelt Server - results for unnamed job 260420_052336
Job Parameters
Submitted at Mon 20 Apr 2026 05:24:04 AM UTC
5'-AAGACGGAGAGACCA-3' vs. 5'-GGGTCTCTCCGTCTT-3'
From 0°C by 1°C to 95°C as DNA
[A0] = 2e-12 M, [B0] = 2e-08 M
[Na+] = 0.05 M, [Mg++] = 0.003 M (oligo mode)
Computation took 13.0 seconds (Log file)
Plots

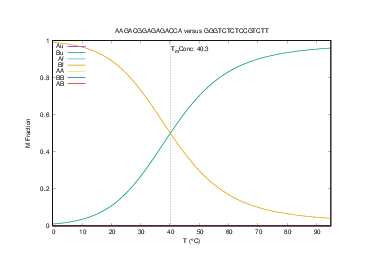

| Concentration Plot | |
|---|---|
)) | |
| Download: Postscript PDF Text | |

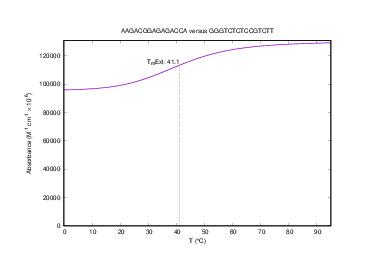

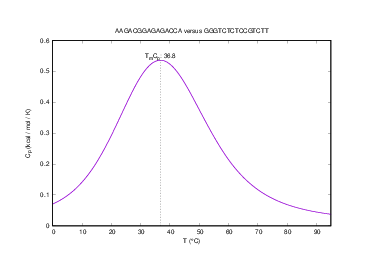

| Heat Capacity Plot | Absorbance Plot |
)) |
)) |
| Download: Postscript PDF Text | Download: Postscript PDF Text |
| Download detailed plot: Postscript PDF | Download detailed plot: Postscript PDF |
Probability Dot Plots
Important Numbers
Tm(Conc): 40.3°C
ΔG: 3.3 kcal/mol ΔH: 23.0 kcal/mol ΔS: 73.7 cal/mol/K Tm(Cp): 36.8°C
Tm(Ext1): 38.0°C
Tm(Ext2): 41.1°C
Download the entire job with all files, formatted as:
tar/bzip2
tar/gzip
zip
The first time you ask for an archive there may be a slight delay while it is created.
